Basic Info
Model NO.: 12V90AJ
Usage: UPS, Electric Power, Lighting, Electric Bicycle, Boat
Discharge Rate: High Discharge Rate
Electrolyte: Acid
Rechargeable: Chargeable
Brand Name: GOLD LIGHT POWER
Advantage 1: High Capacity, Good Quality
Productong Lead-Time: 15~30 Days After Deposit
Trademark: GOLD LIGHT POWER
Origin: Guangdon, China(Mainland)
Type: Lead-Acid Batteries
Nominal Voltage: 12V
Shape: Square Battery
Installation: Fixed
Color: Any Color The Customer Needs
Quality Standard: ISO9000, CE, RoHS, MSDS, Soncap, Coc/Voc, IEC Test
Advantage 2: High Performance, with Low Price
Packing Quantity: 1PCS/Box
Specification: CE\RoHS\COC\VOC\SONCAP
HS Code: 8507200000
Product Description

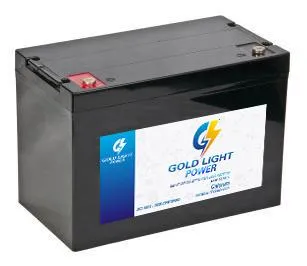

12V 90ah sealed lead acid AGM vrla battery
12v90ah UPS ECO Lead Acid Battery For Telecommunicate System Hospital Power Emergency Power Supply
SPECIFICATIONS
Cells Per Unit | 6 |
Voltage Per Unit | 12 |
Capacity | 12V90AH@10hr-rate to 1.80V per cell @25ºC |
Operating Temperature Range | Discharge: -20 ºC~60ºC |
Normal Operating Temperature Range | 25ºC±5ºC |
Float charging Voltage | 13.6 to 13.8 VDC/unit Average at 25ºC |
Equalization and Cycle Service | 14.6 to 14.8 VDC/unit Average at 25ºC |
Self Discharge | Batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using. |
Container Material | A.B.S. UL94-HB, UL94-V0 Optional. |
Technical Features and Benefits
♦Deep Cycle design
A special additive is mixed in lead paste to provend the active material dropping off and resist vibration.
♦Thick plate
We apply thicker plate to adapt more high-density Active Material
♦Longer Life
The Deep Cycle Design make the longer life of batteries in Deep Cycle Applications.
♦Recovery Ability
The battery can recover from Deep Discharge quickly.
♦Good Internal Water Cycling
Based on the Oxygen Compound principle, litttle gas generated & little water depletion
♦Excellent discharge characteristics
Low internal resistance, compact, excellent discharge performance
♦Sealed Battery system with recombination
Absolutely maintenance free
Safe application in closed compartments
♦Lead/Calcium alloy on positive and negative plates
Constant cold cranking performance over the entire service life
Minimal self discharge idea for seasonal applications
♦Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance
♦Long Service Life
A unique corrosion-resistant grid alloy ensures MCA batteries have long service life
♦Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
♦Safe and Reliable
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting
6V, & 12V Series
