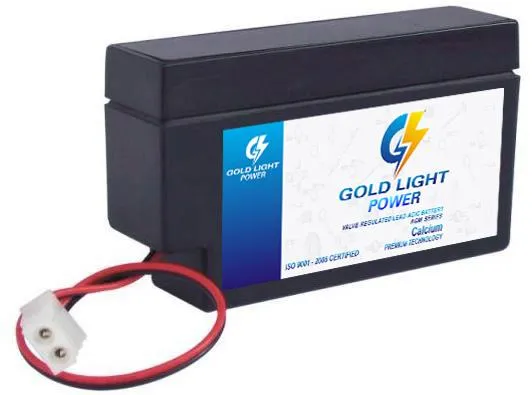

China Supply 12v0.8ah UPS ECO Lead Acid Battery For Telecommunicate System Hospital Power Emergency Power Supply

China Supply 12v0.8ah UPS ECO Lead Acid Battery For Telecommunicate System Hospital Power Emergency Power Supply

Basic Info Model NO.: 12V0.8AH Usage: UPS, Electric Power, Lighting, Electric Bicycle, Boat Discharge Rate: High Discharge Rate Electrolyte: Acid Rechargeable: Chargeable Brand Name: GOLD LIGHT POWER Advantage 1: High Capacity, Good Quality Production Lead-Time: 15~30 Days After Deposit...

Product Details

Basic Info

Model NO.: 12V0.8AH

Usage: UPS, Electric Power, Lighting, Electric Bicycle, Boat

Discharge Rate: High Discharge Rate

Electrolyte: Acid

Rechargeable: Chargeable

Brand Name: GOLD LIGHT POWER

Advantage 1: High Capacity, Good Quality

Production Lead-Time: 15~30 Days After Deposit

Size(mm): 96*25*61

Transport Package: Our Own Brand Packaging, & OEM

Origin: Guangdon, China(Mainland)

Type: Lead-Acid Batteries

Nominal Voltage: 12V

Shape: Square Battery

Installation: Fixed

Color: Any Color The Customer Needs

Quality Standard: ISO9000, CE, RoHS, MSDS, Soncap, Coc/Voc, IEC Test

Advantage 2: High Performance, with Low Price

Packing Quantity: 1PCS/Box

Trademark: GOLD LIGHT POWER

Specification: CE\RoHS\COC\VOC\SONCAP

HS Code: 8507200000


Product Description

12V 0.8ah sealed lead acid AGM vrla battery


China Supply 12v0.8ah UPS ECO Lead Acid Battery For Telecommunicate System Hospital Power Emergency Power Supply

SPECIFICATIONS

Cells Per Unit

6

Voltage Per Unit

12

Capacity

12V0.8AH@20hr-rate to 1.75V per cell @25ºC

Operating Temperature Range

Discharge: -20 ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC

Normal Operating Temperature Range

25ºC±5ºC

Float charging Voltage

13.6 to 13.8 VDC/unit Average at 25ºC

Equalization and Cycle Service

14.6 to 14.8 VDC/unit Average at 25ºC

Self Discharge

Batteries can be
stored for more than 6 months at 25ºC. Self-discharge
ratio less than 3% per month at 25ºC. Please charge
batteries before using.

Container Material

A.B.S. UL94-HB, UL94-V0 Optional.


Characteristics

Gold Light Power Deep Cycle series 12V Sealed free maintenance lead acid batteries up to 300Ah (D Type, "D"
Behind the model name stands for deep-cycle application) are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle(deep cycle). It uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, which allows for a much longer life in deep cycle applications.
Advanced Features:
1. Sealed and maintenance free operation
2. Non-Spillable construction design
3. Safety valve installation for explosion proof.
4. High quality and high reliability.
5. Exceptional deep discharge recovery performance.
6. Low self discharge characteristic.
7. Flexibility design for multiple install positions
8. The operating ambient temperature -40 to +65
9. Long life span 10-12 years
10. Using oxygen recombination technology: Maintenance-free
11. Pb-Ca-Sn alloy for plate grids: Less gassing and less self-discharging
12. High quality AGM separator: Extend cycle life and prevents micro short circuit
13. ABS material: Increases the strength of battery container. (Flame-retardant ABS is optional)
14. High purity raw material: Ensures low self discharge rate
15. Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity




date 2.jpg








6V, & 12V Series

6V & 12V Series.jpg
